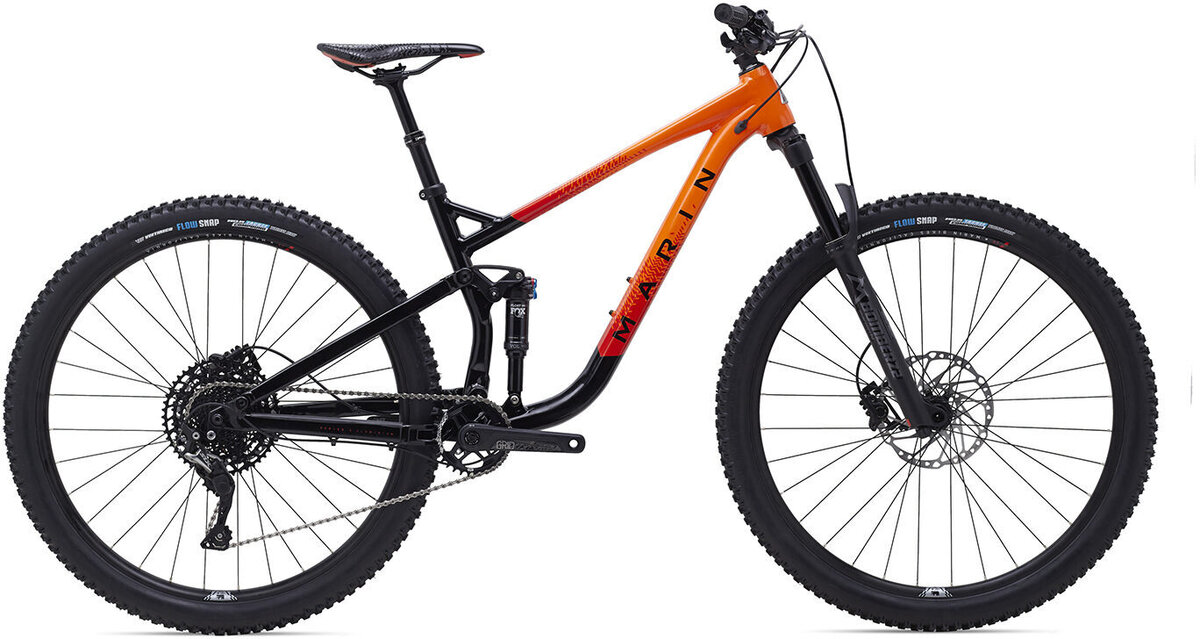

Marin Rift Zone 3 29"

The Rift Zone represents the most modern 29” short travel trail bike possible featuring 125mm of MultiTrac suspension and progressive geometry that takes full advantage of decades of trail riding experience to create best-in-class handling, both in and out of the saddle. The Rift Zone is available with a carbon fiber or aluminum front triangle and is an ideal bike for mixing it up between long trail days in the saddle and fast weeknight group rides.

FAST PACED, EPIC RIDES

PUSHING THE ENVELOPE UP AND DOWN THE TRAIL

CHASING PERSONAL RECORDS

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

Key upgrades from Rift Zone 29 2:

Marzocchi Bomber/Fox Float DPS suspension
Shimano SLX drivetrain
Shimano M420 4-piston brakes
Maxxis Assegai tires

FRAME
Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION
Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
REAR SUSPENSION
Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
RIMS
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB, REAR
Forged Alloy, 148x12mm, Quad Sealed Bearings, 32H, Standard Freehub Body
HUB, FRONT
Forged Alloy, 110x15mm, 32H
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
Vee Tire Co, Flow Snap, 29x2.35, Tackee Compound, 72 TPI, Tubeless Compatible
DERAILLEUR, REAR
Shimano SLX SGS, Direct Attachment, 12-Speed
DERAILLEUR, FRONT
-
SHIFT LEVER
Shimano SLX, 12-Speed, SL-6100IR
CRANKSET
FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
BOTTOM BRACKET
Mego EXO 73mm BSA
CHAIN
KMC X-12 Silver and Black
CASSETTE
SunRace, 12-Speed, 11-51T, ED Black
BRAKE, FRONT
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
BRAKE, REAR
Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
BRAKE LEVERS
Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Single Clamp Locking
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
SADDLE
Marin Speed Concept
PEDALS
-
EXTRAS
Bolt-On Thru-Axle
