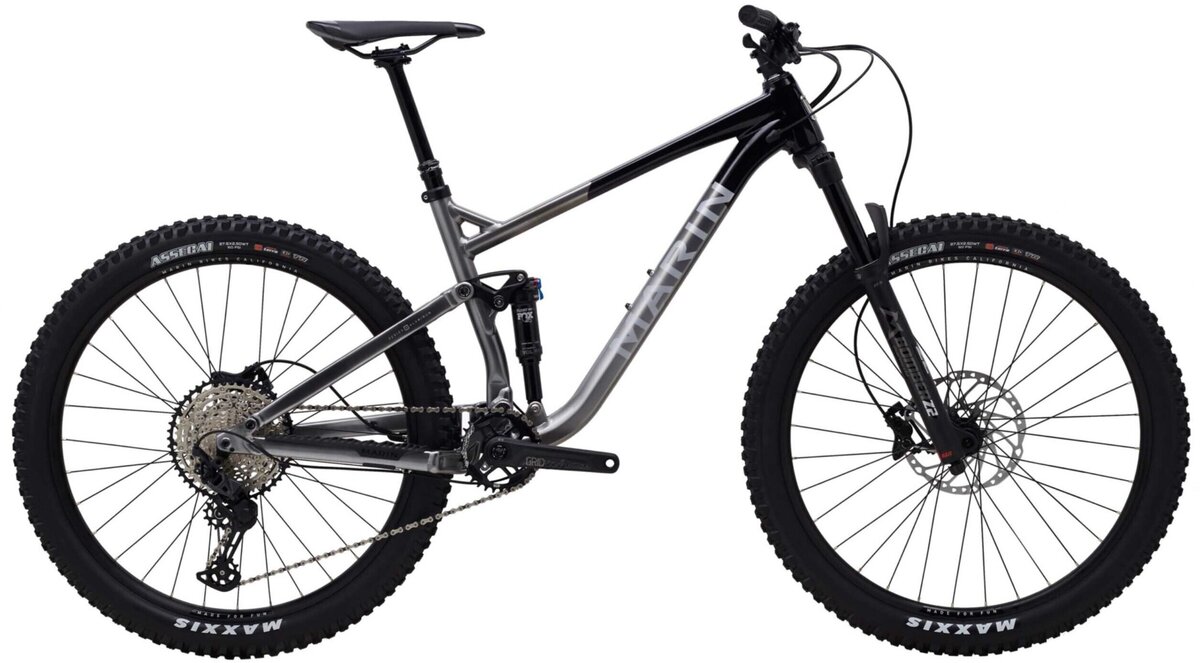

Marin Rift Zone 3 - 27.5"

ALL AROUND TRAIL ENJOYMENT

HAVING FUN

The Rift Zone 27.5 is our most playful trail bike, made for the rider that catches a bit of air off of every root in the trail, is always looking for an alternate line, and ends every ride with a smile. This is an all-around suspension bike with trail performance far out stretching the asking price.

Key upgrades from Rift Zone 27.5 2:

Marzocchi Bomber/Fox Float DPS suspension
Shimano SLX drivetrain
Shimano M420 4-piston brakes
Maxxis Assegai tiresSPECIFICATIONS

FRAME
Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION
Marzocchi Bomber Z2 27.5", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
REAR SUSPENSION
Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
RIMS
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
HUB, REAR
Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
HUB, FRONT
Shimano HF-MT410B, 110x15mm, Centerlock
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES
Maxxis Assegai, 27.5x2.5", MAXX TERAA, EXO, Tubeless Compatible
DERAILLEUR, REAR
Shimano SLX, 12-Speed, SGS
DERAILLEUR, FRONT
-
SHIFT LEVER
Shimano Deore, 12-Speed, SL-7100R, I-Spec EV
CRANKSET
FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
BOTTOM BRACKET
Mego EXO 73mm BSA
CHAIN
KMC X-12 Silver and Black
CASSETTE
Shimano, SLX 12-Speed, 10-51T
BRAKE, FRONT
Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
BRAKE, REAR
Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
BRAKE LEVERS
Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Single Clamp Locking
HEADSET
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
SADDLE
Marin Speed Concept
PEDALS
-
EXTRAS
Bolt-On Thru-Axle
