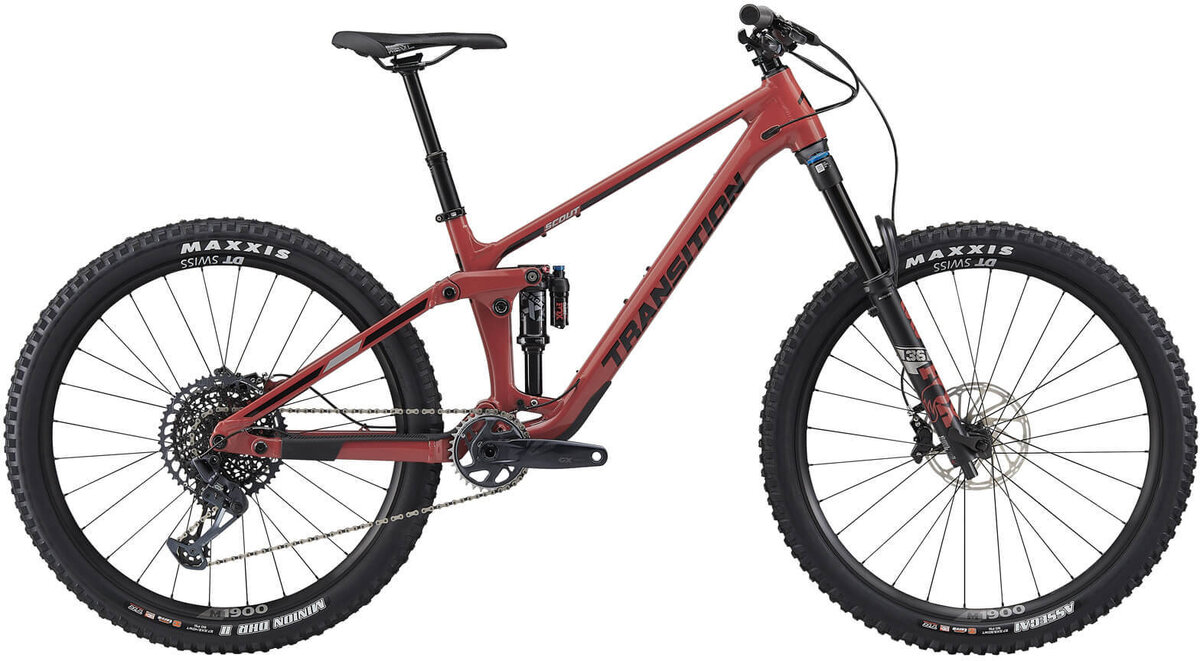

Transition Scout - Alloy

The Composed Sport Bike
Hop on the Scout and you're immediately transformed into a projectile.

The Scout will awaken your inner child. Manual here, scrub that, skid there, pedal up this. Freedom to boost everything in sight, overshoot every landing without a care, mixed with nose bonking and hooting your way down the trail. Sporty, but just as eager to tackle bigger terrain. The Scout's trail charisma is infectious and will cause you to look at your regular trails through a new perspective. Pedal up and repeat.


GIDDYUP SUSPENSION DESIGN

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

We did this by balancing a 24% progressive leverage curve with a consistent linear rate of change. Anti-squat is tuned to enhance pedaling performance and acceleration. Overall chain growth is moderate and reduces after sag so chain tension doesn't get in the way of the suspension working.

This translates to killer small bump compliance and great mid-stroke support that gradually transitions into an end of stroke ramp that is subtle, yet supportive. The amount of consistent progression is carefully optimized for both air and coil shocks. Riders are able to add or remove volume spacers in air shocks to suite their individual riding style and there is no compromise to bottom out support with coil shocks. The Scout has 140mm of rear wheel travel when used with the supplied 205mm x 57.5mm stroke shock. It is also possible to install a longer, 205mm x 62.5mm stroke shock, to increase the rear wheel travel to 150mm.

A wide usable sag range of 25 - 35% allows the rider to tune the feel of the bike; from poppy and playful, to planted for plowing. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.


Frame Specifications

REAR TRAVEL: 140mm (Compatible with 150mm)

FRONT TRAVEL: 150mm

WHEEL SIZE: 27.5"

SIZES: Carbon: XS, SM, MD, LG, XL
Alloy: XS, SM, MD, LG

COLORS: Carbon: Midnight Blue, Olive Green
Alloy: Classy Black, Raspberry Red

FRAME BEARINGS: 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900

FORK AXLE TO CROWN: 545mm

FORK OFFSET: 37mm

REAR SHOCK SIZE: 205mm x 57.5mm (Compatible with a 205mm x 62.5mm shock)

SHOCK HARDWARE: Trunnion Mount Top / 25mm x 8mm Bottom

HEADSET (TOP): 44mm Zero Stack

HEADSET (BOTTOM): 56mm Zero Stack

BB SHELL: 73mm BSA Threaded

CHAINLINE: 52mm

REAR BRAKE MOUNT: 180mm Post Mount

REAR AXLE: Carbon: Syntace X12 148, with a 1.0mm thread pitch
Alloy: Transition Axle For UDH, 12mm x 148mm Spacing

ISCG TABS: ISCG05

SEATPOST DIAMETER: 31.6mm

SEAT CLAMP: Carbon: 37.0mm
Alloy: 34.9mm

MAX SEATPOST
INSERTION: Carbon: XS 210mm | Small 220mm | Medium 250mm | Large 290mm | XL 320mm
Alloy: XS 230mm | Small 240mm | Medium 270mm | Large 310mm

MAX CHAINRING SIZE: 34T Single Ring

MAX TIRE SIZE: 27.5 x 2.6

REAR SHOCK SAG: 140mm/57.5mm: 15-19mm (26-33%)
150mm/62.5mm: 16-20mm (26-32%)
