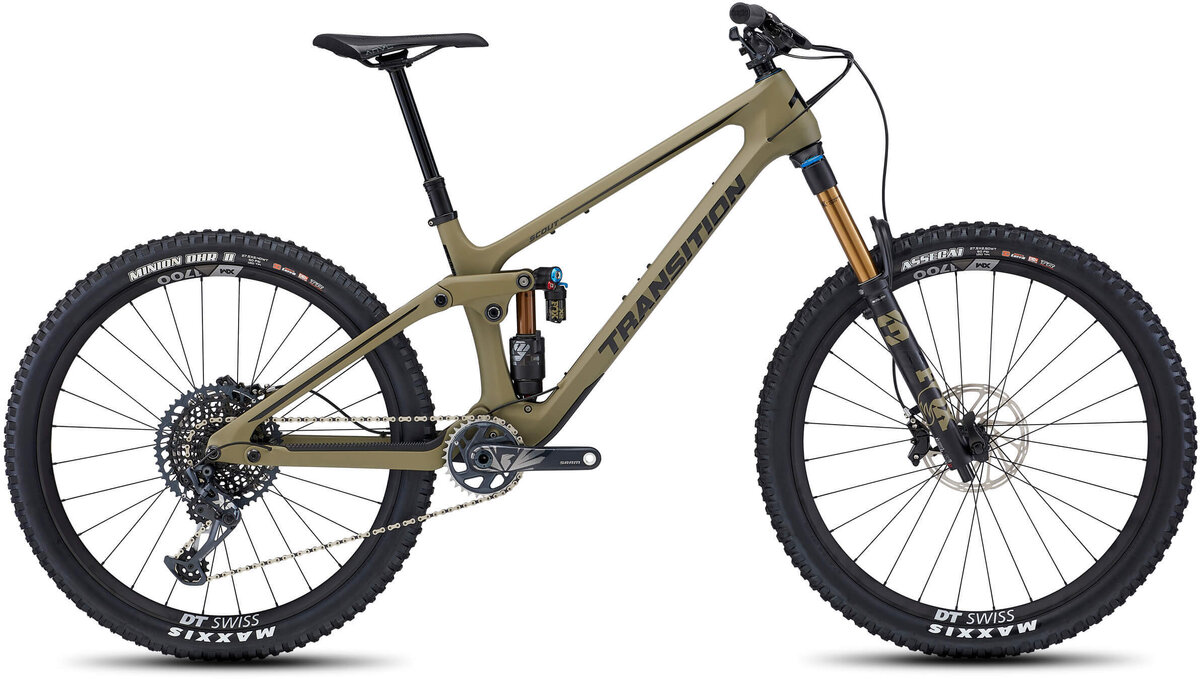

Transition Scout

The Composed Sport Bike
Hop on the Scout and you're immediately transformed into a projectile.

The Scout will awaken your inner child. Manual here, scrub that, skid there, pedal up this. Freedom to boost everything in sight, overshoot every landing without a care, mixed with nose bonking and hooting your way down the trail. Sporty, but just as eager to tackle bigger terrain. The Scout's trail charisma is infectious and will cause you to look at your regular trails through a new perspective. Pedal up and repeat.

Frame Specifications

REAR TRAVEL: 140mm (Compatible with 150mm)

FRONT TRAVEL: 150mm

WHEEL SIZE: 27.5"

SIZES: Carbon: XS, SM, MD, LG, XL
Alloy: XS, SM, MD, LG

COLORS: Carbon: Midnight Blue, Olive Green
Alloy: Classy Black, Raspberry Red

FRAME BEARINGS: 2x 6903, 2x 6902, 4x 6802, 2x 3802, 2x 6900

FORK AXLE TO CROWN: 545mm

FORK OFFSET: 37mm

REAR SHOCK SIZE: 205mm x 57.5mm (Compatible with a 205mm x 62.5mm shock)

SHOCK HARDWARE: Trunnion Mount Top / 25mm x 8mm Bottom

HEADSET (TOP): 44mm Zero Stack

HEADSET (BOTTOM): 56mm Zero Stack

BB SHELL: 73mm BSA Threaded

CHAINLINE: 52mm

REAR BRAKE MOUNT: 180mm Post Mount

REAR AXLE: Carbon: Syntace X12 148, with a 1.0mm thread pitch
Alloy: Transition Axle For UDH, 12mm x 148mm Spacing

ISCG TABS: ISCG05

SEATPOST DIAMETER: 31.6mm

SEAT CLAMP: Carbon: 37.0mm
Alloy: 34.9mm

MAX SEATPOST
INSERTION: Carbon: XS 210mm | Small 220mm | Medium 250mm | Large 290mm | XL 320mm
Alloy: XS 230mm | Small 240mm | Medium 270mm | Large 310mm

MAX CHAINRING SIZE: 34T Single Ring

MAX TIRE SIZE: 27.5 x 2.6

REAR SHOCK SAG: 140mm/57.5mm: 15-19mm (26-33%)
150mm/62.5mm: 16-20mm (26-32%)
