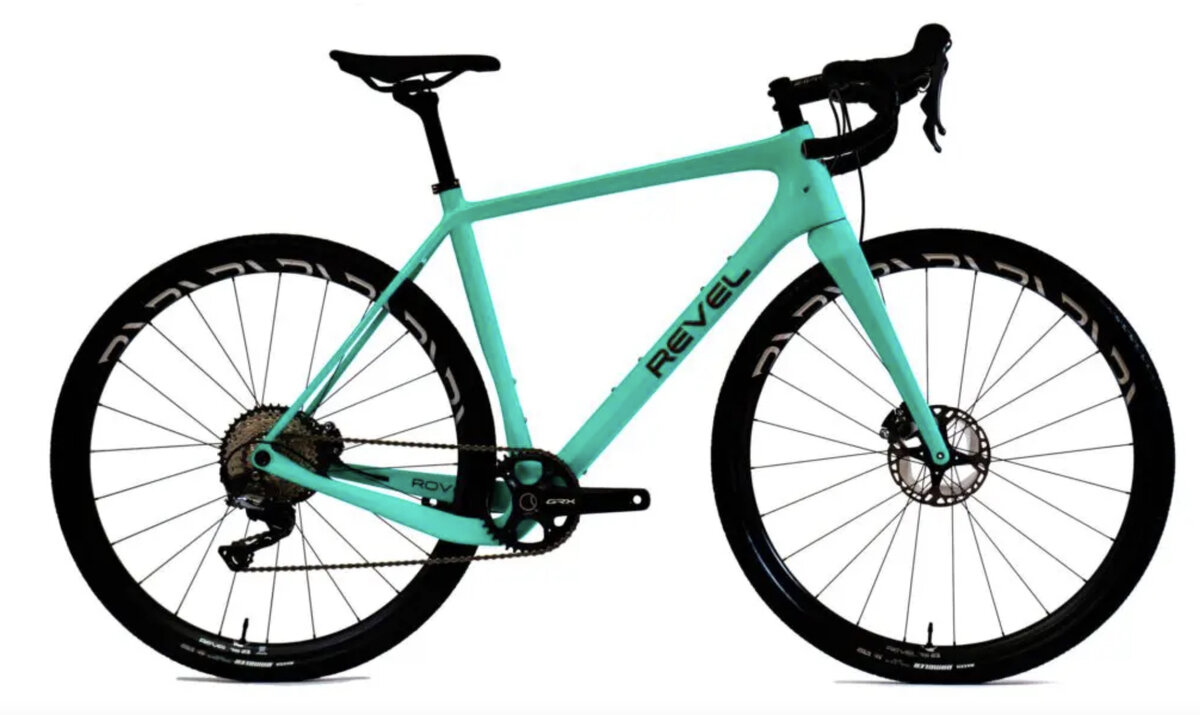

Revel Bikes Rover GRX

Welcome to the Revel Rover.
A gravel bike from Revel?! Yep, we’re better known for our shreddy mountain bikes with legendary CBF suspension, but a little known fact is most of us here at Revel ride gravel bikes at least as much as we ride mountain bikes. We’re also the same people behind Why Cycles and their R+, so we like to think we know a thing or two about designing high end, modern gravel bikes. Really, we’re materials geeks at heart, and we always like to use the right material for the right application. However, gravel bikes are where the waters get a little muddy. We’ve been riding the titanium R+ since we launched it in 2016 and it has gotten glowing reviews, but we all wanted a carbon version too.
We knew we could make a pretty neat gravel bike by taking full advantage of the ability to shape carbon exactly how we want and truly optimize the ride quality.

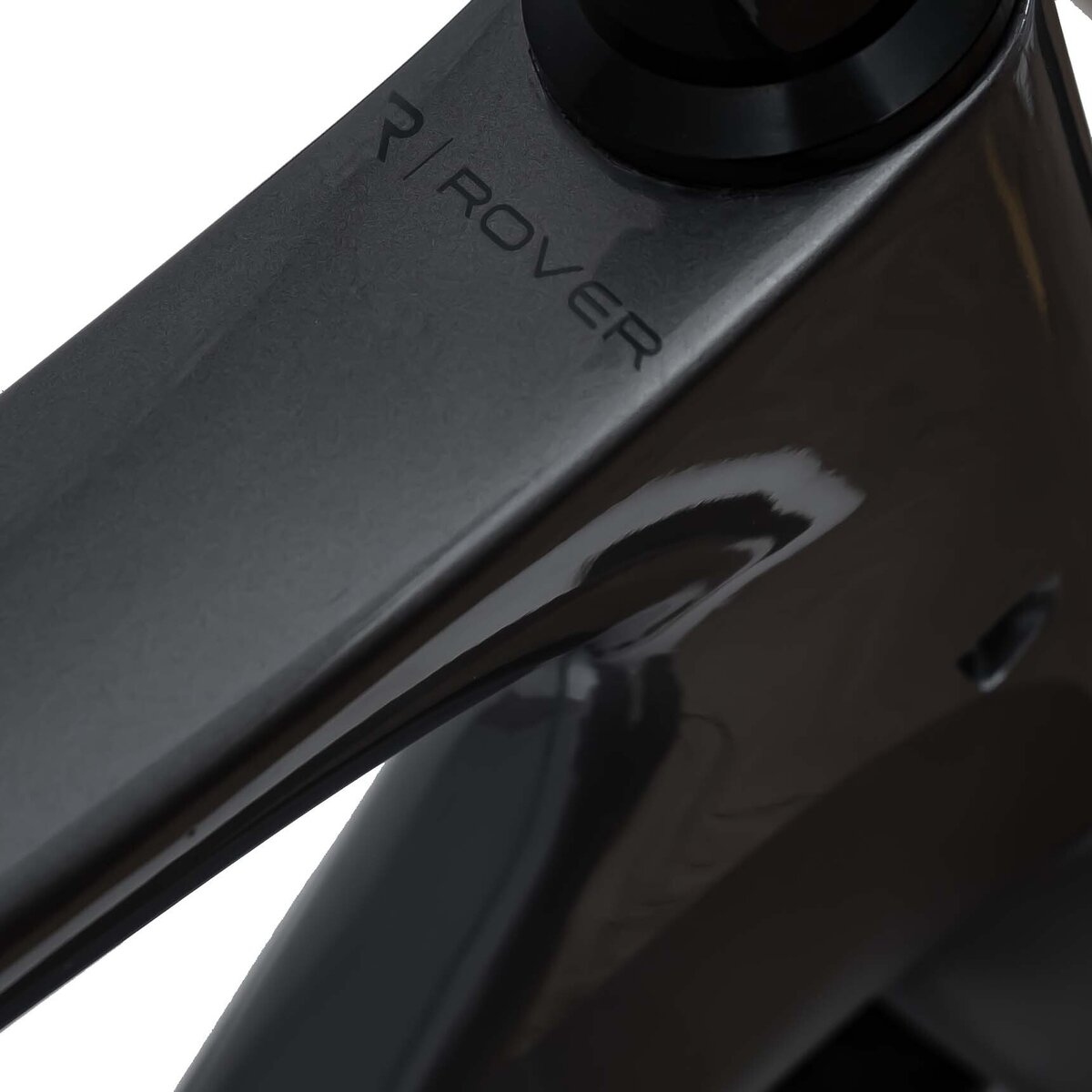

Frame – Revel Rover
Fork – Revel Gravel Fork 12×100 47mm
Headset – Revel Headset IS42/IS52
Wheels – Industry Nine 700c 1/1 GRCX Centerlock (*upgrade available)
Tubeless– Stans No tubes Single shots x2
Tires – Maxxis Rambler 700x40c
Bar – Zipp Service Course SL 70 XPLR 44cm
Stem – Zipp Service Course SL 80mm (SM/MD Frames) or 90mm (LG, XL,XXL Frames)
Post – Revel Carbon Seat Post 27.2 x 400mm
Saddle – WTB Volt CroMo Black
Shifter – Shimano GRX RX810 11spd
Brakes – Shimano GRX RX810
Rotors – Shimano GRX RT-MT800 Centerlock 160mm
Rear Derailleur – Shimano GRX RX812
Chain – Shimano GRX HG701
Cassette – Shimano GRX M8000 11 Speed
Crankset – Shimano GRX RX810 172.5mm 40t
Bottom Bracket – Shimano GRX BBR60 68mm
Grips – Lizard Skins Tape 2.5mm Black
**Specifications subject to change without notice**

SPECS
Wheel Size 700c (27.5 compatible)
Front Travel 000mm
Rear Travel 000mm
Axles 142 x12mm rear / 100x12mm front
Seatpost Diameter 27.2mm
Seatpost Insertion Depth SM (200mm), MD (250mm), LG (275mm), XL (300mm), XXL (320mm)
Cable Routing Internal (incl. Dropper)
Rear Brake 140mm mount / 160mm max
Brake Rotors Centerlock rotors with internally serrated lockrings only.
Tire Clearance 700x50mm, 27.5×2.1
Bottom Bracket BSA 68mm English Threaded
Max Chainring 50T Round (47.5mm Chainline) / 46T ROUND (45mm Chainline) / OVAL TBD
Headset IS42 Upper / IS52 Lower
Colors T1000 / Mint
Sizes S / M / L / XL / XXL
Frame Warranty Lifetime Warranty
