29? WHEELS / 130MM REAR / 140MM FRONT

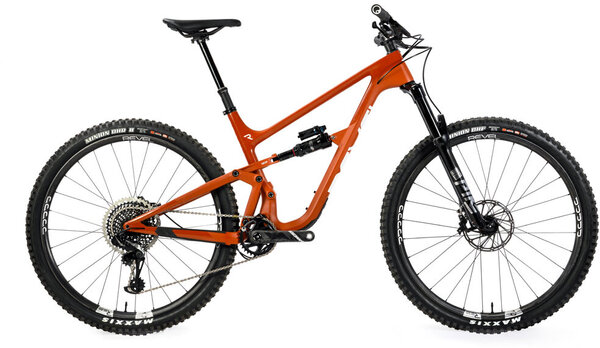

The Rascal lives up to its name- it is a sleek looking machine that is mischievously fast, nimble, and adept. Think capability and playfulness in both ascend and full send mode. Our vision for the Rascal was to deliver a confidence-inspiring and ultra-versatile mountain bike in all applications. The Canfield Balance Formula is the heart of every Revel bike, which maximizes the amount you pedal in the sweet spot. The Rascal is a fast and capable mountain bike in a sleek package that you can ride every day, regardless of terrain.
Wheel Size 29?
Front Travel 140mm
Rear Travel 130mm
Shock Spec 210 x 50-22.2 x 8 Hardware Spec
Boost Axles 148mm rear / 110mm front
Seatpost Diameter 31.6mm (use our size guide to choose the best dropper height!)
Bearings BOLU 6801 VRS full complement, 12mm x 21mm x 5mm 18pcs per bike
Rear Brake 180mm post mount / 203mm max
Tire Clearance 29? x 2.4?
Bottom Bracket Threaded (73mm English threaded)
Chainguide Custom Revel guide included
Tapered Headtube IS42 upper / IS52 lower
Colors Alaska / T1000
Sizes S / M / L / XL
Frame Warranty Lifetime Warranty(Details HERE)
GEOMETRY & SIZING
The Rascal has a few unique geometry features, and the second you hop on this bike you’ll feel that it wants to go fast, uphill and down. Long and not too low, slack but stable. The short stays and ability to run a 130mm fork for speedy, more aggressive pedaling stance or a 140mm fork for a more balanced and capable ride, the Rascal will constantly surprise you.
CBF™ focuses on designing around the Center of Curvature (CC) and balancing that with the Instant Center (IC). Until now, most suspension systems have focused solely on the IC. CBF points the chainline and drive forces directly into the IC throughout 100-percent of the travel by balancing the CC over the chainring, resulting in maximum pedaling efficiency, regardless of where you are in the travel, what terrain you are on or what kind of power you’re putting down. All the power you put into the pedals propels you one direction–forward—allowing the suspension to do its job completely independent of drivetrain and braking forces, and making the sag setting much less important. When we first rode the largely-unknown CBF system, we knew it was something special, and we knew we could make the best riding carbon mountain bikes using this magical formula.
